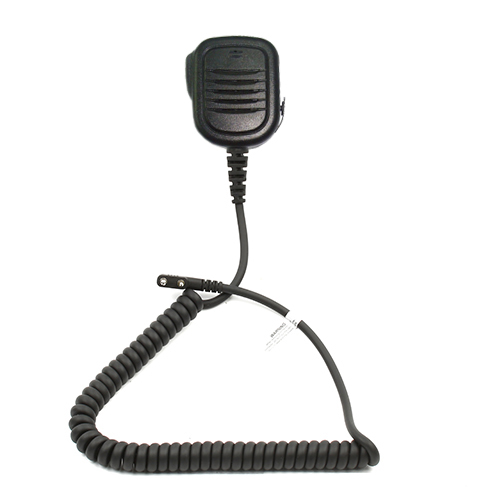

PTE-1306 Remote Speaker Microphone for Motorola Two-Way Radios

No.PTE-1306
Compact and durable IP54-rated remote speaker microphone, designed for Motorola and other two-way radios with reliable PU cable options.
  • Remote popluar speaker microphone for walkie talkie

Description

The PTE-1306 Remote Speaker Microphone offers the same reliable performance as the PTE-1308, with a different housing design to meet varied user preferences.

  • Durable Cable Options: Standard 4.2mm PU cable with Kevlar® reinforcement for strength, or 5.5mm PU heavy-duty cable for demanding applications.
  • Temperature Resilience: Designed to operate from -20°C to +70°C.

  • 3.5mm Audio Jack: Supports earpiece connection for clear and private listening.

  • Custom Packaging: Available in retail box or cost-saving PE bag packaging.

  • OEM Branding: Custom logos and connectors available for bulk orders.

  • Compatibility: Fits Motorola and other leading two-way radio models.

Applications:
Suitable for security, construction, industrial, and outdoor professionals requiring reliable radio communication.

Speaker Specification

Size Ø45MM
Impedance 8Ω±15% @1KHZ
Sensitivity 92±3dB/1Watt.0.5Meter
Frequency respond (F0)~20KHZ
Rated input power 1.0W
Maximum input power 1.5W

Microphone Specification
Size Ø9.7×6.5MM
Sensitivity -56 ± 2dB
Impedance 2.2KΩ 1kHz (RL=2.2KΩ)
Frequency 100HZ-10KHz
Operation Voltage Range 1.0V-10V (DC)

CTA (Call to Action):
Select the PTE-1306 for proven reliability with a new ergonomic design.
Contact us today for samples and OEM solutions.
