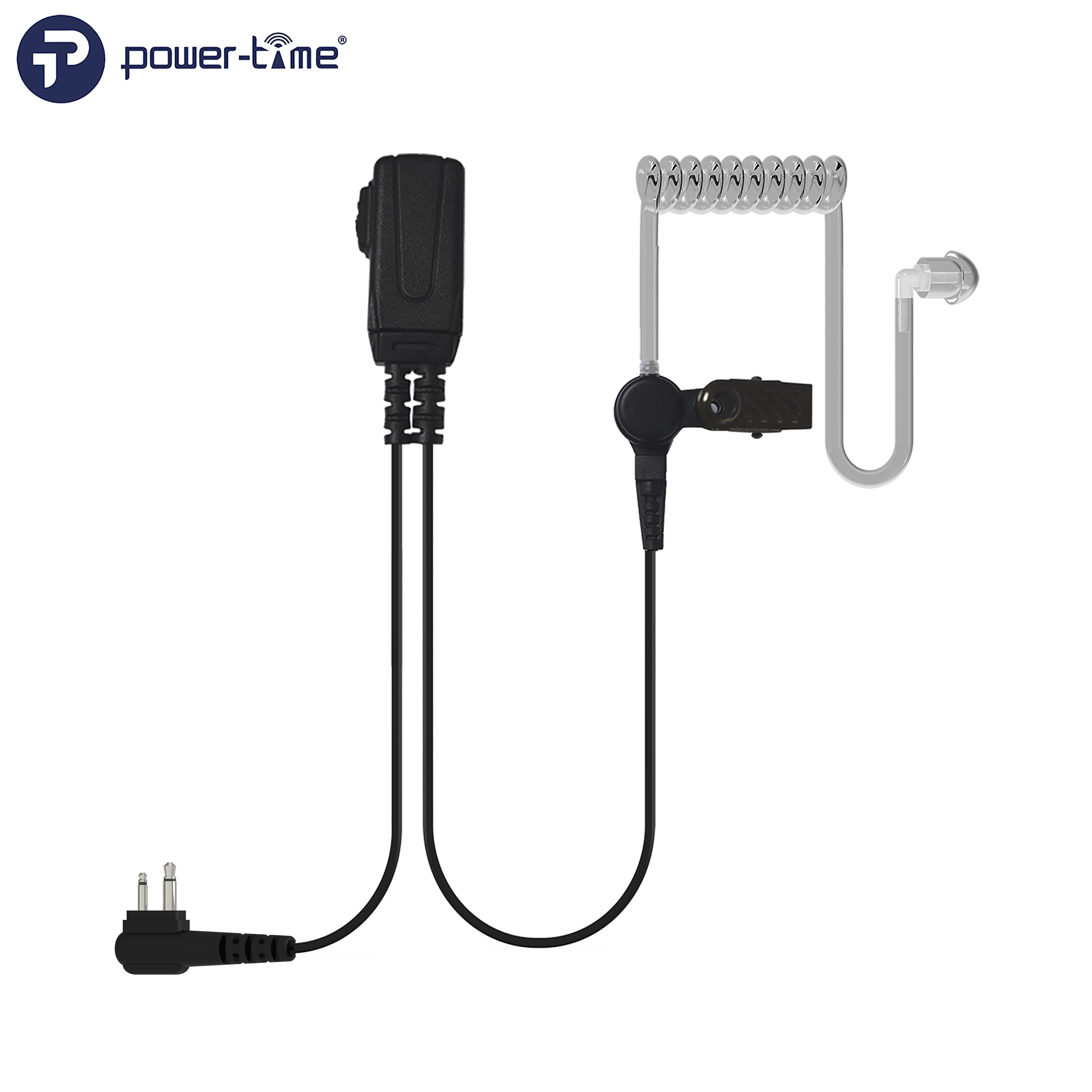

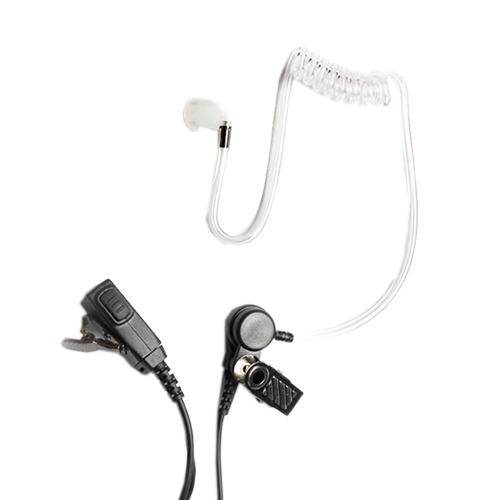

PTE-800 1-Wire Acoustic Tube Surveillance Earpiece for Police and Security

No.PTE-800
Simple and reliable one-wire earpiece for law enforcement and private security teams.
  • PTE-800 1-Wire Acoustic Tube Surveillance Earpiece for Police and Security
  • One wire acoustic tube style surveillance kits earphone for police, security

Description

The Compact And Reliable 1-Wire Earpiece PTE-800 has a durable PTT button (tested for 80,000 presses), a replaceable acoustic tube, and a Kevlar-reinforced cable for long-term reliability and strength. It offers customizable earpieces (mushroom head, triangle, anti-noise foam) for diverse needs, serves as an economical, quality solution, and is ideal for security personnel, restaurant staff and stewards.

Features:
  • Durable PTT Button: Small and easy to operate, tested for 80,000 presses for long-term reliability.
  • Replaceable Acoustic Tube: Maintain hygiene and extend product life with ease.
  • Kevlar-Reinforced Cable: Engineered for exceptional strength and durability.
  • Customizable Earpieces: Includes mushroom head, triangle, and anti-noise foam options for various need
  • Economical and Practical: A cost-effective solution without compromising quality.
  • Versatile Applications: Ideal for security personnel, restaurant staff, and stewards.

Speaker Specification
Type Transducer: Moving coil dynamic speaker
Impedance 100Ω±15% @1KHZ
Sensitivity 105dB±3dB@1KHZ
Resonance freq 4KHZ±20%
Frequency respond 100Hz~4.5KHz
Rated input power 1mW
Maximum input power 10mW

Microphone Specification
Sensitivity Range -44 ± 2dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa B16
Impedance Max 2.2KΩ 1kHz (RL=2.2KΩ)
Frequency 20-20KHz
Current Consumption Max 0.5uA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range 1.0V-10V (DC)
Max Sound Pressure Level 115dB S.P.L  THD<2% at 1K
