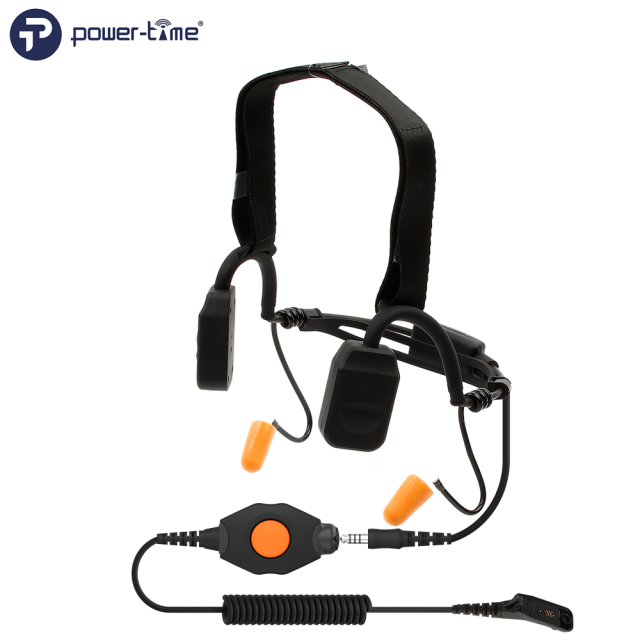

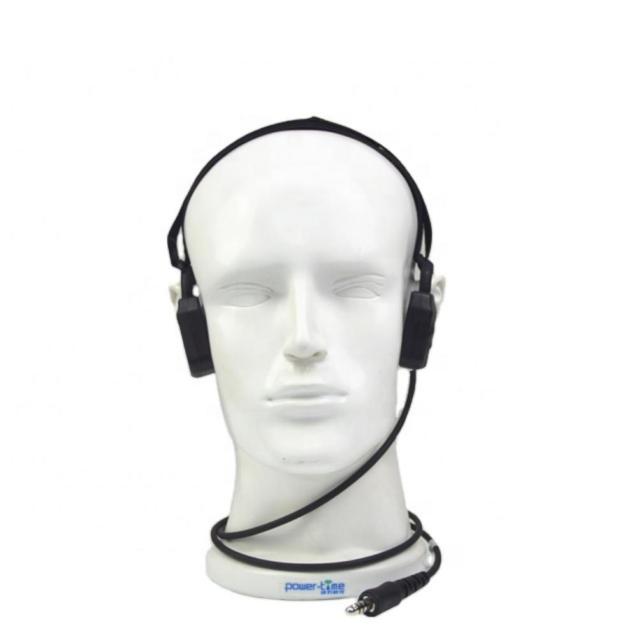

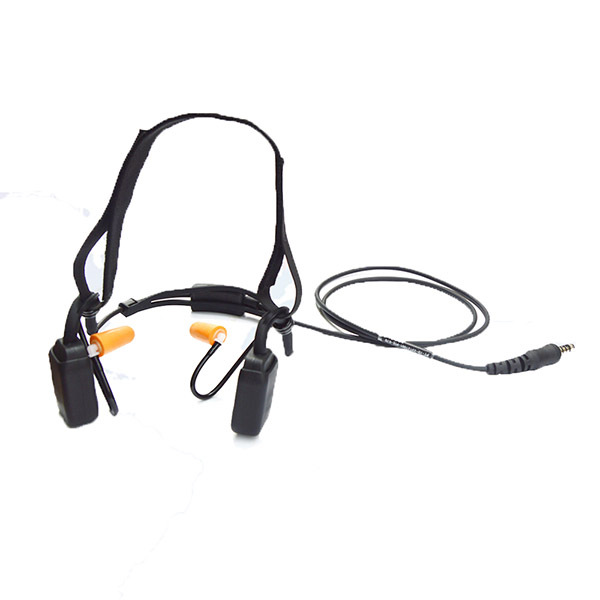

Military high noise canceling Bone conduction headset

No.PTE-570
Neckband version work for helmet noise canceling headset with boom mic
  • Military high noise canceling Bone conduction headset
  • Military high noise canceling Bone conduction headset
  • Military high noise canceling Bone conduction headset
  • Military high noise canceling Bone conduction headset
Description
Speaker Specification
Type Vibration speaker
Impedance 8Ω±15% @1KHZ
Sensitivity 88±3%/1W
Resonance freq 600HZ±20%
Frequency respond 300Hz~19KHz
Rated input power 1W
Maximum input power 2W

Microphone Specification
Type Capacitance MIC
Sensitivity Range -41 ± 2dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa B16
Impedance Max 2.2KΩ 1kHz (RL=2.2KΩ)
Frequency 300-5KHz
Current Consumption Max 0.5uA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range 1.0V-10V (DC)
Max Sound pressure Level 115dB S.P.L  THD<10% at 1K Hz
Note: Specifications according to customer requirements, welcome to customize!
