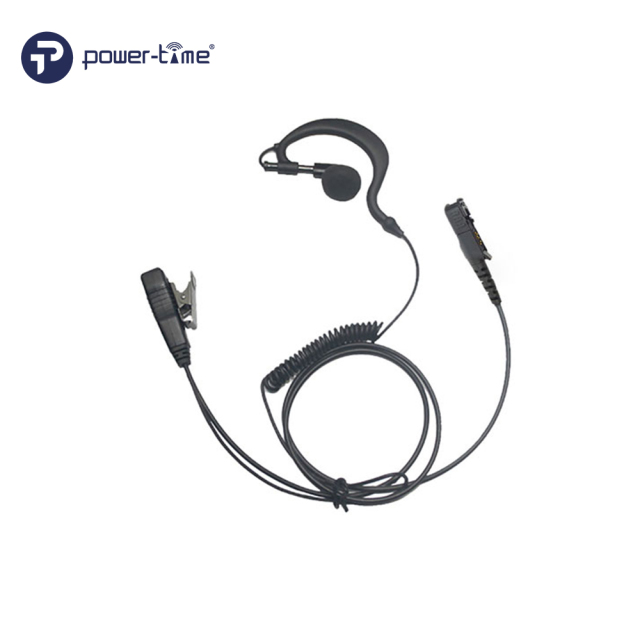

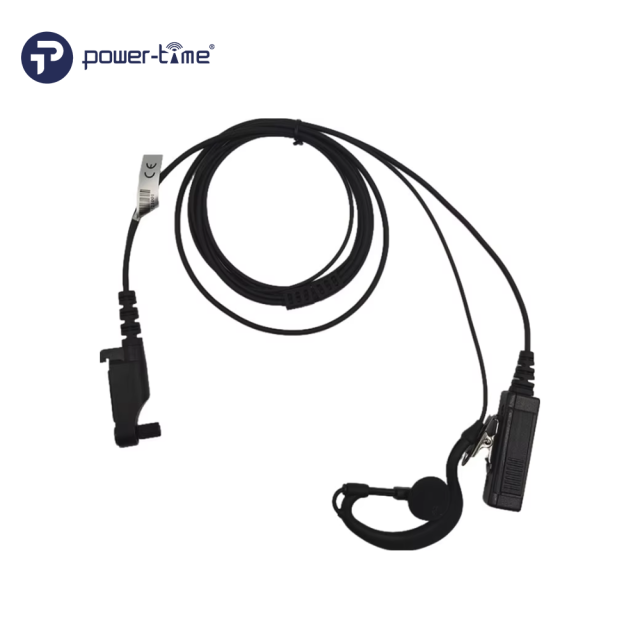

Lapel Popular PTT G shape earhook handfree earphone for two way radio

No.PTE-110N
  • Lapel Popular PTT G shape earhook handfree earphone for two way radio
Description
Speaker Specification
Type Moving coil dynamic speaker
Impedance 32Ω±15% @1KHZ
Sensitivity 104±4dB @1KHZ
Resonance freq 4KHZ±20%
Frequency respond 600Hz~4KHz
Rated input power 1mW
Maximum input power 10mW

Microphone Specification
Sensitivity Range -44±3dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa
Impedance Max 2.2KΩ 1kHz (RL=2.2KΩ)
Frequency 300-4KHz
Current Consumption Max 0.5uA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range 1.0V-10V (DC)
Max Sound pressure Level 115dB S.P.L
