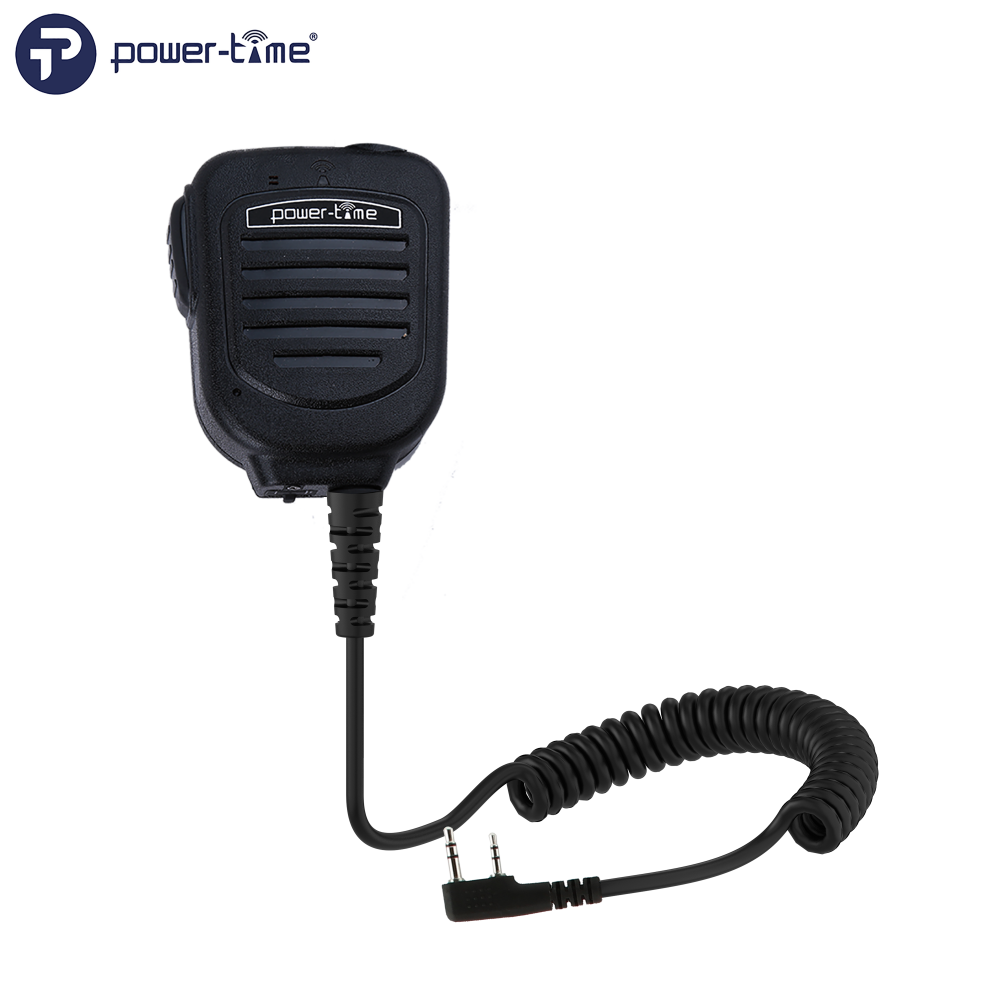

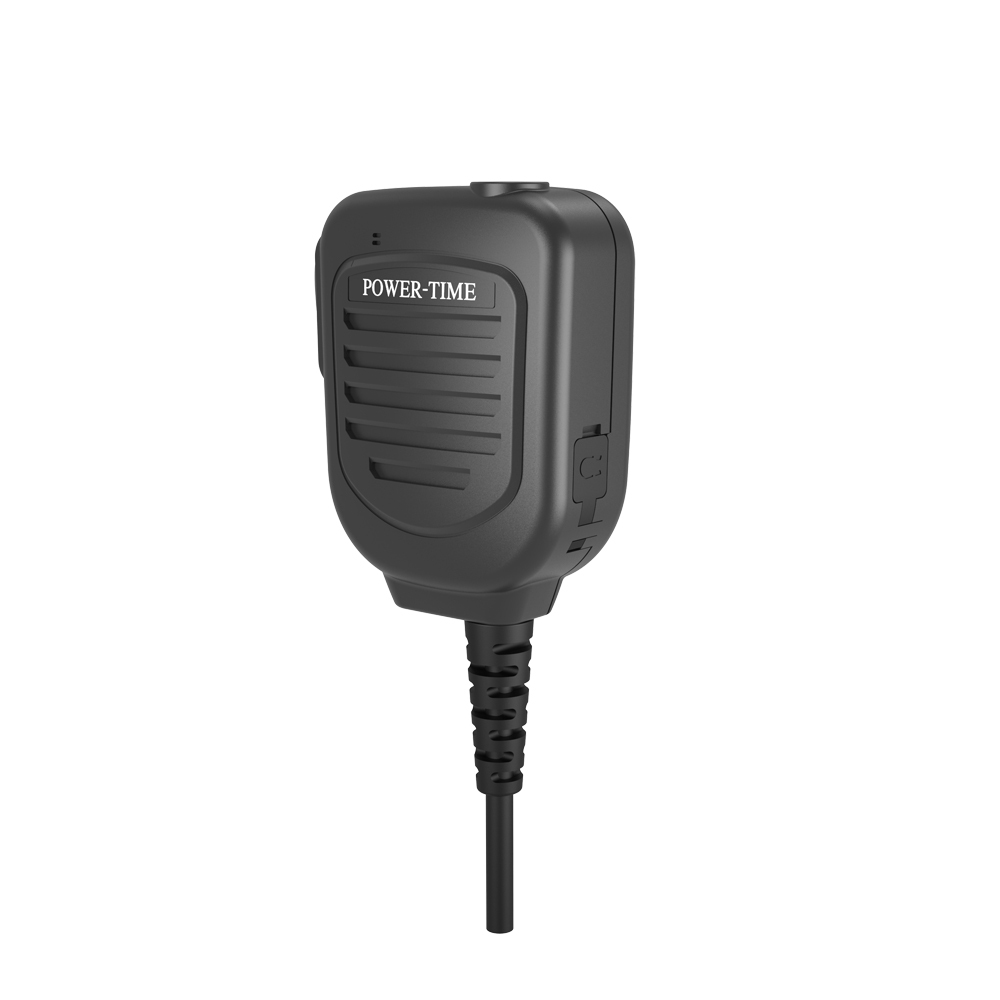

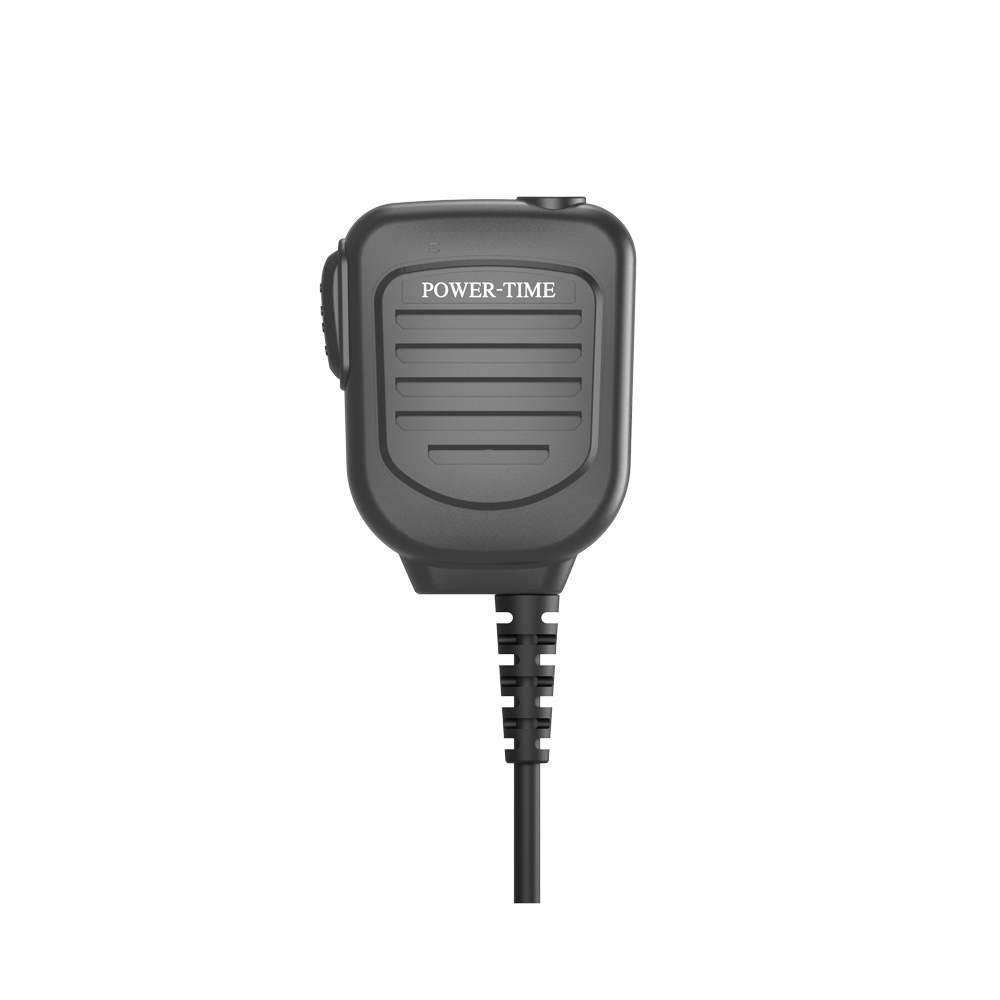

IP67 military standard remote speaker microphone

No.PTE-1315
  • IP67 military standard remote speaker microphone
  • IP67 military standard remote speaker microphone
Description
Speaker Specification
Type Transducer Moving coil dynamic speaker
Impedance 8Ω±15% @1500HZ
Sensitivity 96±3dB @1KHZ
Resonance frequency 450±100HZ
Frequency respond 100~4.5KHz
Rated input power 1mW
Maximum input power 10mW

Microphone Specification
Type Capacitance Mic
Impedance Max 2.2KΩ 1KHZ(RL=2.2KΩ)
Frequency 20-20KHZ
Current Consumption Max 0.5uA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range 1.1-10V (DC)
Max Sound pressure Level 115dB @1KHz THD<1
