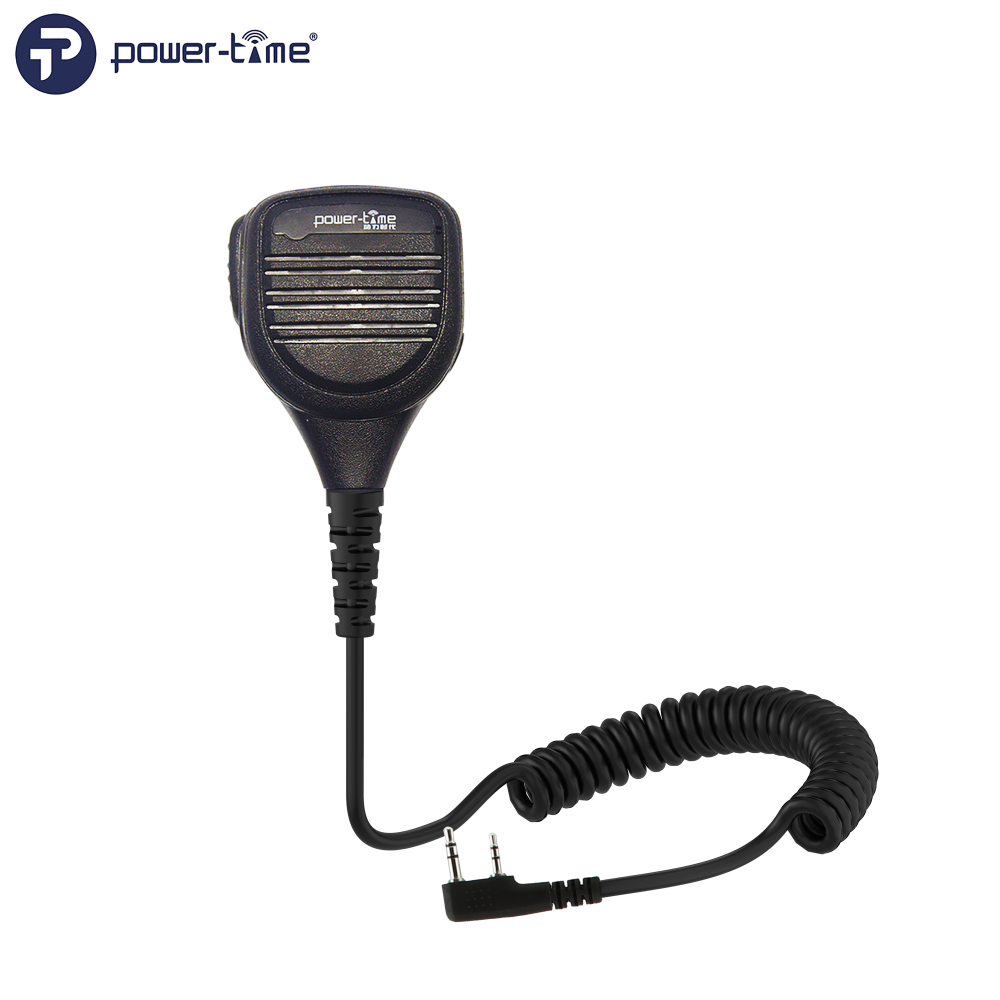

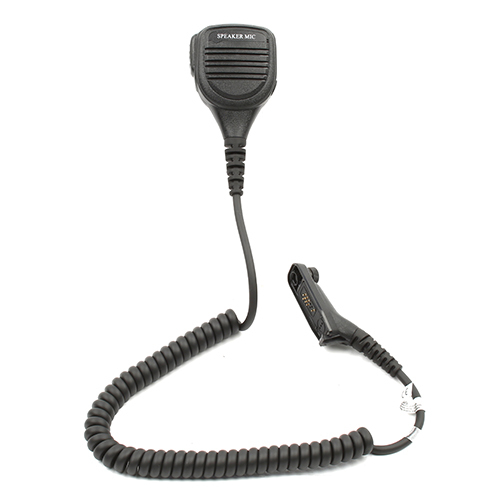

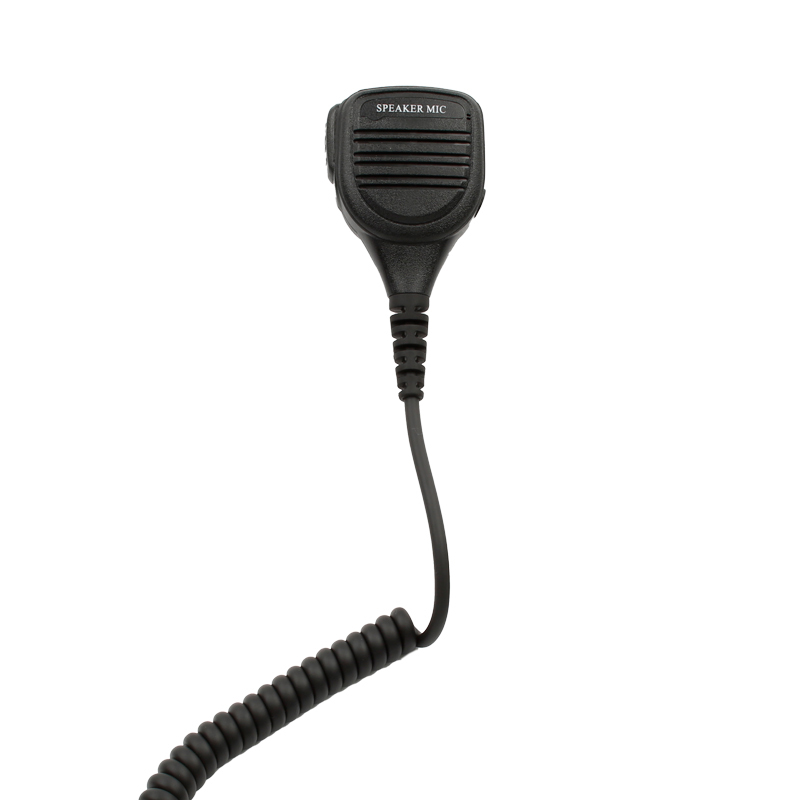

IP54 waterproof speaker microphone for Motorola radios

No.PTE-1308
  • IP54 waterproof speaker microphone for Motorola radios
  • IP54 waterproof speaker microphone for Motorola radios
Description

Speaker Specification
Size Ø45MM
Impedance 8Ω±15% @1KHZ
Sensitivity 92±3dB/1Watt.0.5Meter
Frequency respond (F0)~20KHZ
Rated input power 1.0W
Maximum input power 1.5W

Microphone Specification
Size Ø9.7×6.5MM
Sensitivity -56 ± 2dB
Impedance 2.2KΩ 1kHz (RL=2.2KΩ)
Frequency 100HZ-10KHz
Operation Voltage Range 1.0V-10V (DC)

Cable
Diameter Ø5.5MM Or 4.2MM (depend on the connector)
Material PU
Durable Temperature -30~130℃
