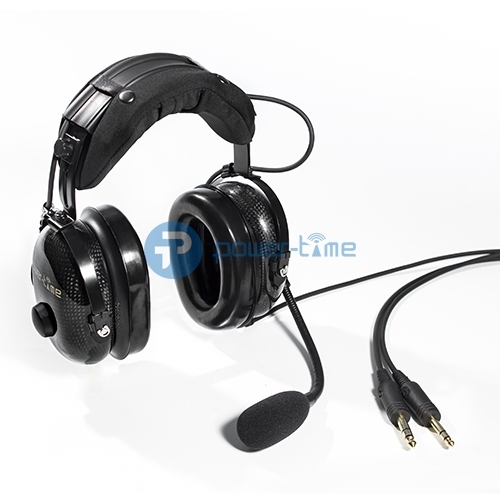

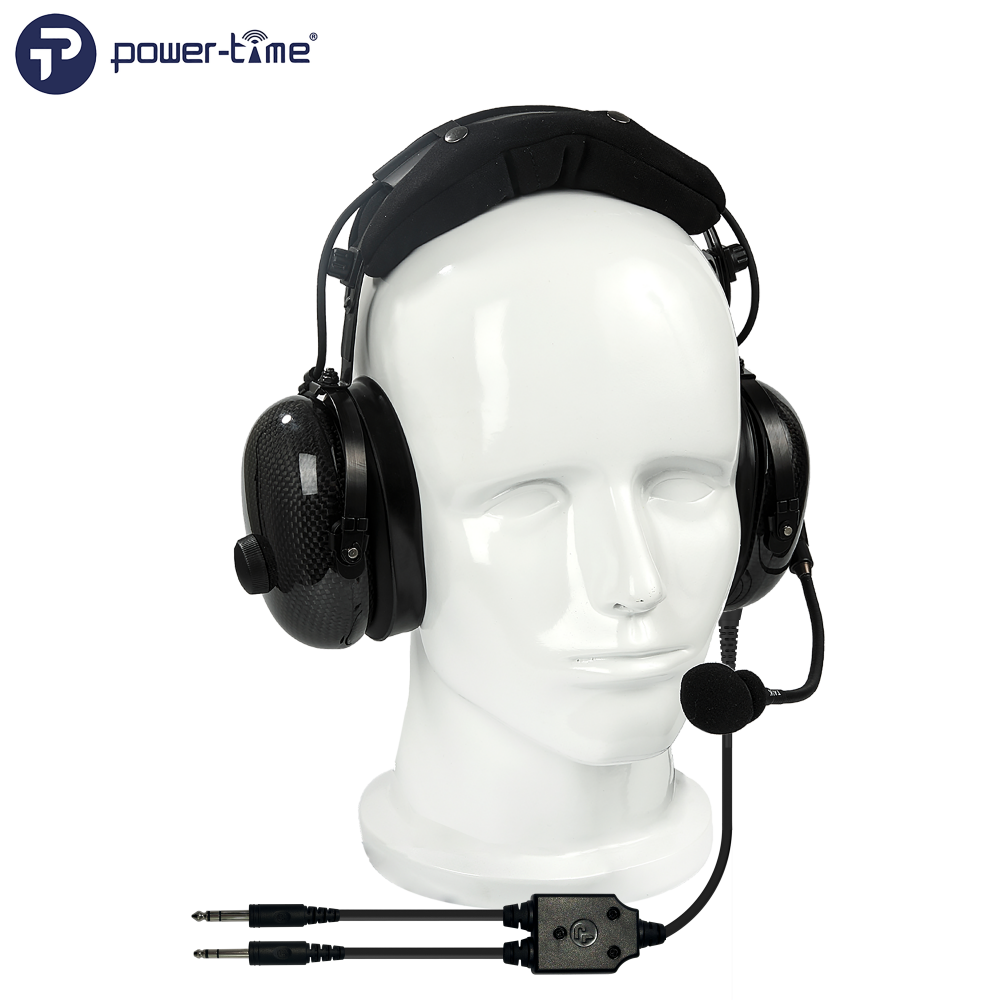

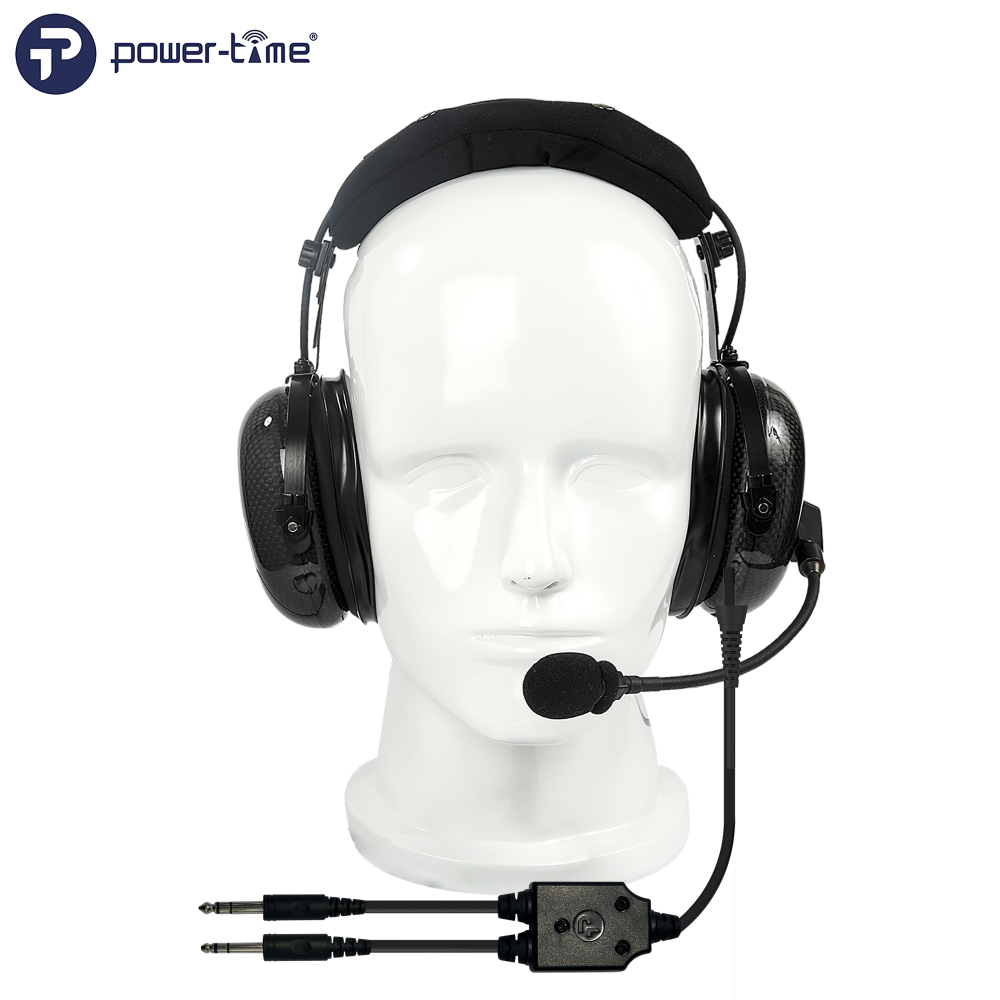

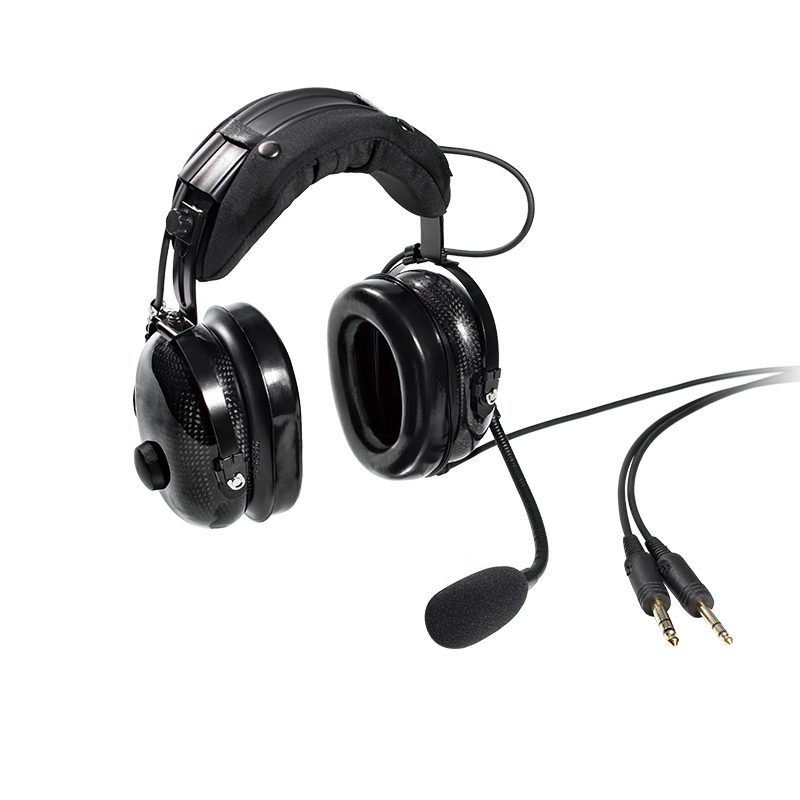

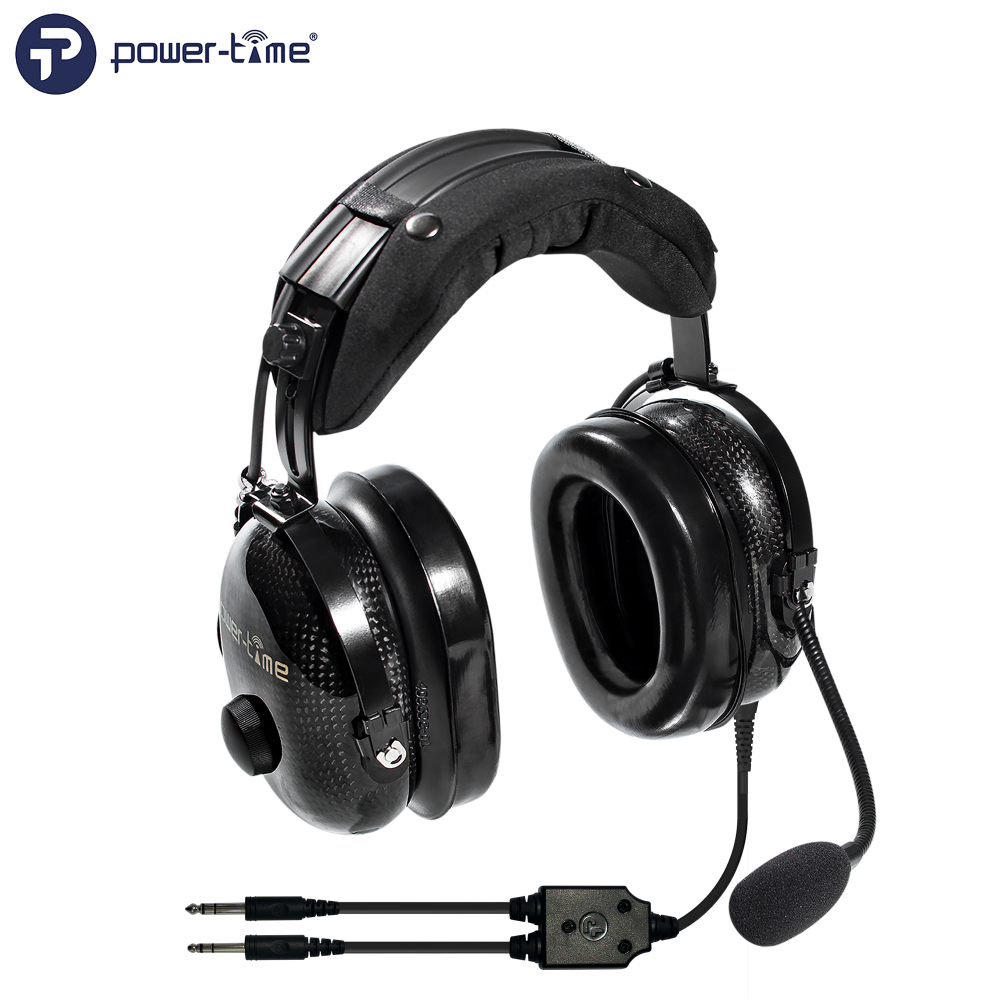

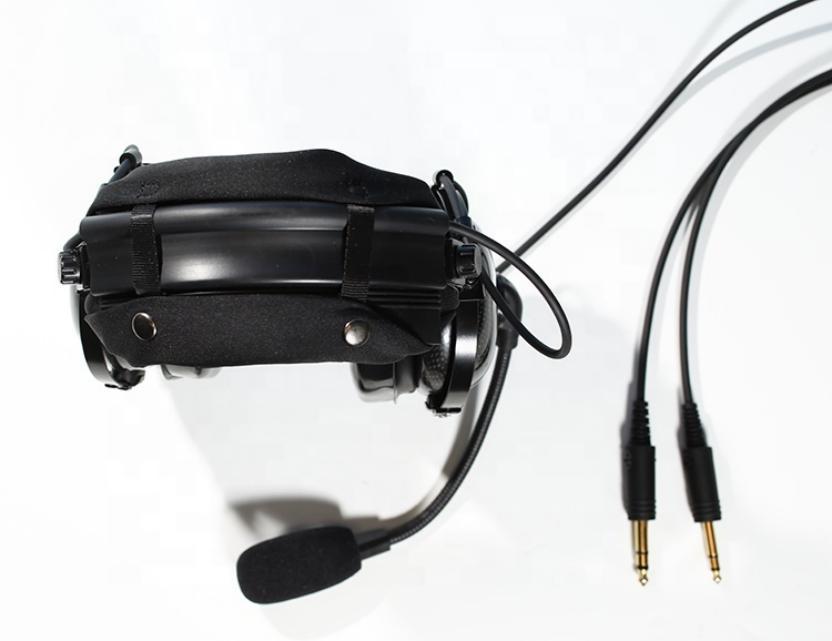

Name: AG-1 Ultra-Light Carbon Fiber Aviation Headset for Fix Wing
Brand: Manufacturer of Two-Way Radio Accessories - Power-Time
SKU: AG-1
Availability: InStock
Rating: 5 (1 reviews)

Description

Ag-1 is for general aviation pilots, ultra-lightweight with carbon fiber ear cups, superior comfort, and crystal-clear communication. Ideal for long flights and noisy cockpit environments.

Key Features:
1. Over the head style, super lightweight
2. Noise Reduction Rating: 25dB(ANSI S3.19-1974 Certificated)
3. Easily replaceable hybrid memory foam earpad with silica gel ear pads

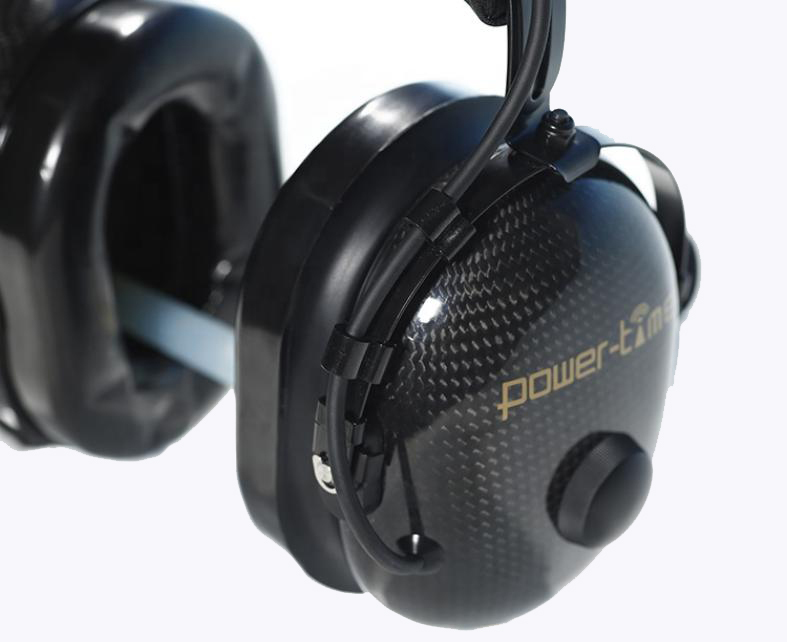

4. High-quality carbon fiber for the earcup, which is very light and robust
5. Volume switch on the earcup
6. Dynamic speaker and pro-flexible boom microphone specially for aviation
7. Meets the RTCA-DO-160G standard

Specification

Type	Parameter	Test Condition	Result	Unit
Speaker	Sensitivity	1mW f =1kHz	85±4	dB
	Resistance adjustable	f =1kHz	150~2150	Ω
	Frequency response	---	200~4000	Hz
	Rated output	---	200	mW
	Max input	---	400	mW
Mic	Sensitivity	f =1kHz (Pin=1Pa 0dB = 1V/Pa)	- 50±4	dB
	Output Impedance	f =1kHz (Pin =1Pa)	＜2.2K	Ω
	Frequency response	---	200~4000	Hz
	Operation voltage	---	2~10	V
	Current Consumption Max	---	≤0.5	mA
Headset	Noise reduction	80-1800Hz average value	≥32	dB
	Standard connector	Gold plating Double pin	5.3&6.3	mm
	Color	Black	---	---
	Work temperature	---	-20~+70	°C
