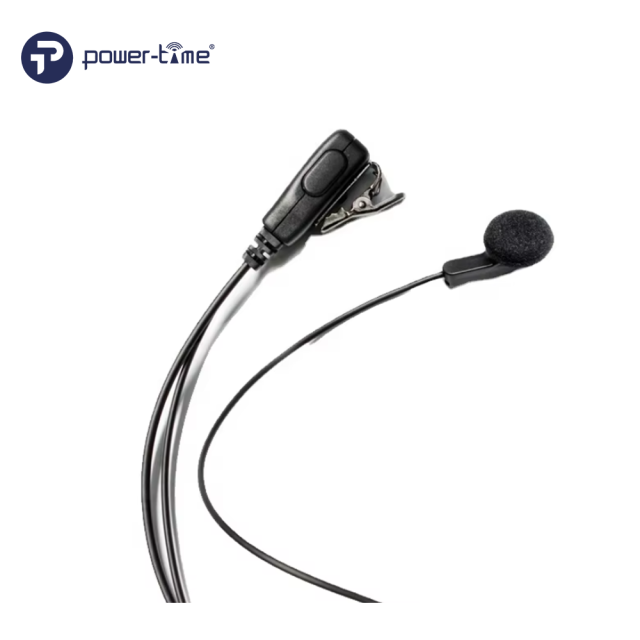

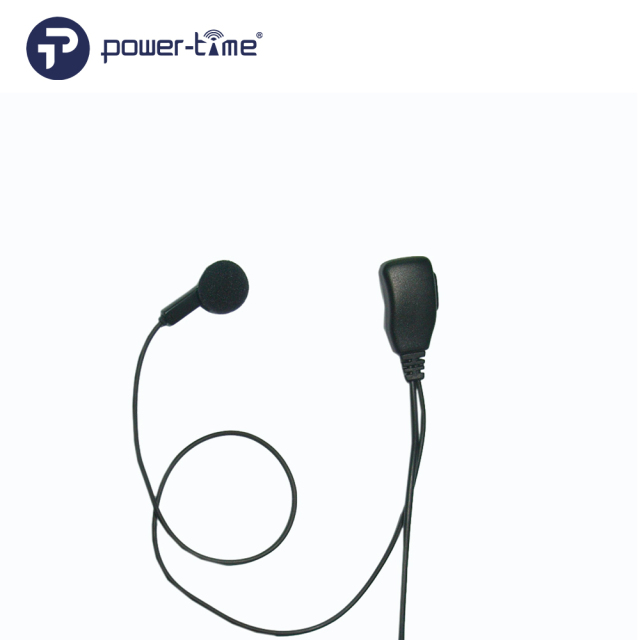

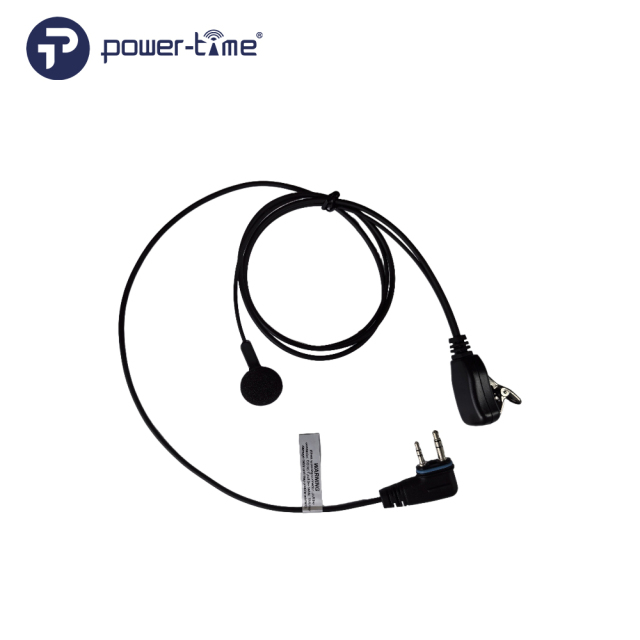

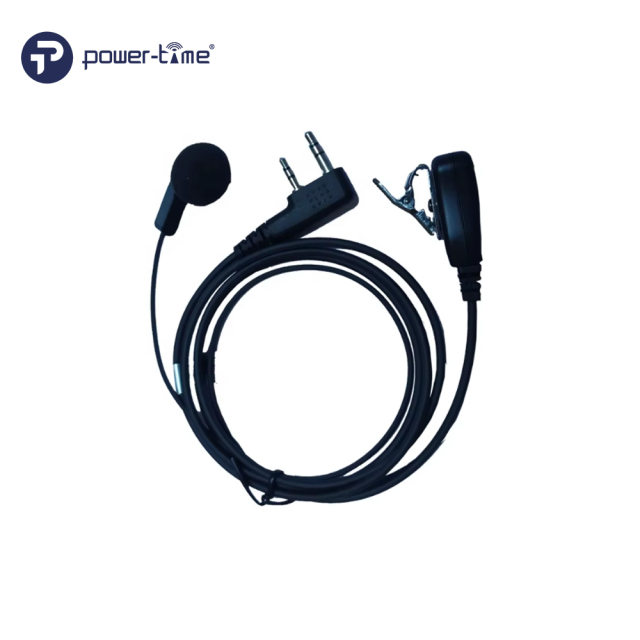

The PTE-100 Earpiece is a professional communication accessory designed for comfort, clarity, and reliability. Featuring a soft earbud, high-quality speaker and microphone, and a compact PTT with a 360° rotating clip, it ensures clear communication and all-day wearability. With customized connectors for various radio brands, it is ideal for hotels, restaurants, conferences, and security professionals.
Key Features
Ergonomic Earbud – soft, flexible, and comfortable for long-time wear on either ear.
High-Quality Speaker & Microphone – ensures clear, reliable communication in noisy environments.
Compact In-Line PTT Button – lightweight design with a 360° rotating belt clip for convenient use.
Universal Compatibility – customized connectors available for different radio brands and models.
Lightweight & Discreet Design – ideal for professional use in service and security industries.
Speaker Specification
| Type |
Moving coil dynamic speaker |
| Impedance |
32Ω±15% @1KHZ |
| Sensitivity |
100±4dB @1KHZ |
| Resonance freq |
400KHZ±20% |
| Frequency respond |
600Hz~4KHz |
| Rated input power |
1mW |
| Maximum input power |
10mW |
|
| Sensitivity Range |
-38± 3dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa |
| Impedance Max |
2.2KΩ 1kHz (RL=2.2KΩ) |
| Frequency |
300-4KHz |
| Current Consumption Max |
0.5uA RL=2.2KΩ Vs=3.0V(DC) |
| Operation Voltage Range |
1.0V-10V (DC) |
| Max Sound pressure Level |
115dB S.P.L |
|
