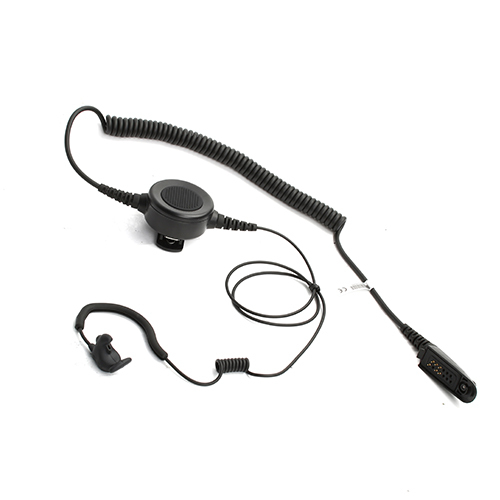

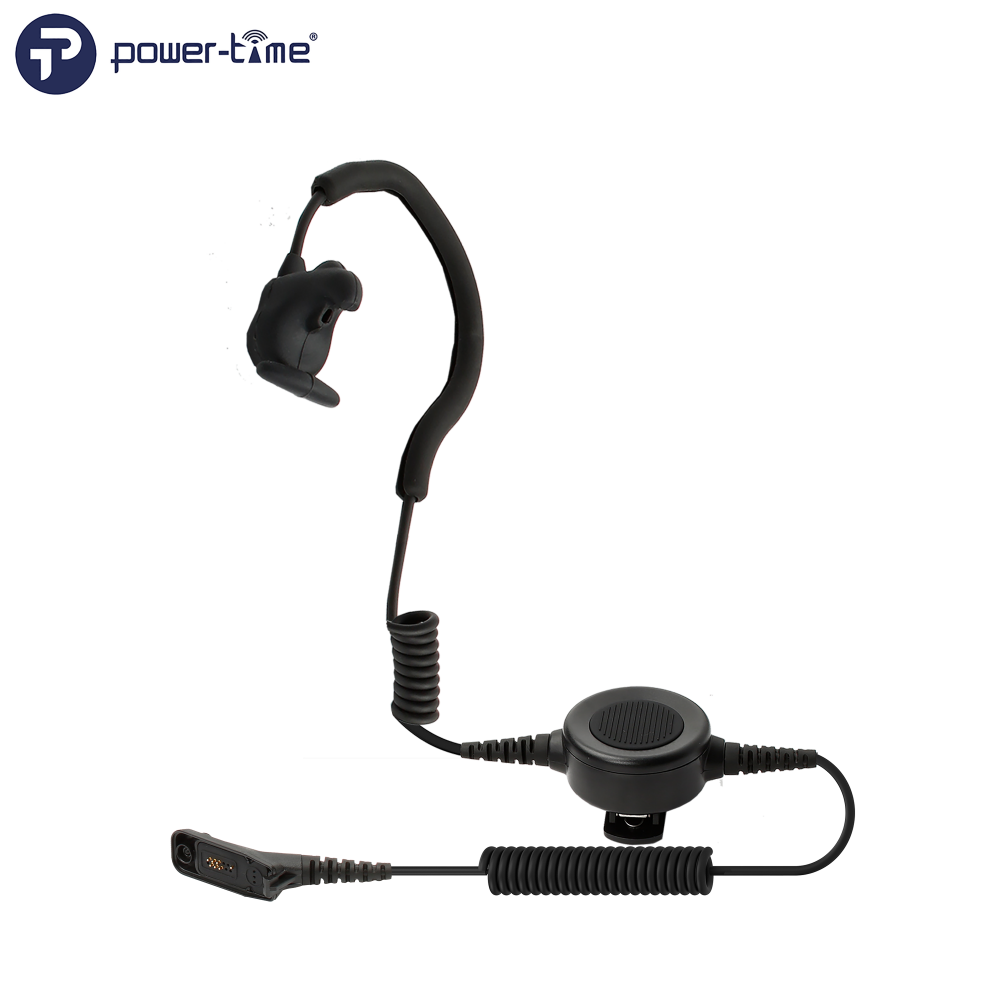

Earbone mic headset with big round PTT for fireman department

No.PTE-540D
Big round PTT with small throat microphone headset
  • Earbone mic headset with big round PTT for fireman department
  • Earbone mic headset with big round PTT for fireman department

Description

PTE-540D (with optional Big Round PTT) enables clear communication in noisy environments while keeping the ear canal open for situational awareness, featuring a comfortable silica gel-integrated speaker/microphone and a precise.
Its Kevlar-reinforced, PU-coated cable boosts durability, making it ideal for use with helmets and masks; it’s suited for firemen, chemical defense personnel, SWAT, policemen and operation forces.
Speaker Specification
Type Transducer Moving coil dynamic speaker
Impedance 32Ω±15% @1KHZ
Sensitivity 110dB±3%/1mW on a Coupler
Frequency respond 100Hz~4.5KHz
Rated input power 1mW
Maximum input power 300mW

Microphone Specification
Type Pickup MIC
Sensitivity Range -38 ± 3dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa B16
Impedance Max 2.2KΩ 1kHz (RL=2.2KΩ)
Frequency 300-5KHz
Current Consumption Max 0.5uA RL=2.2KΩ Vs=3.0V(DC)
Max Sound pressure Level 115dB S.P.L  THD<10% at 1K Hz
