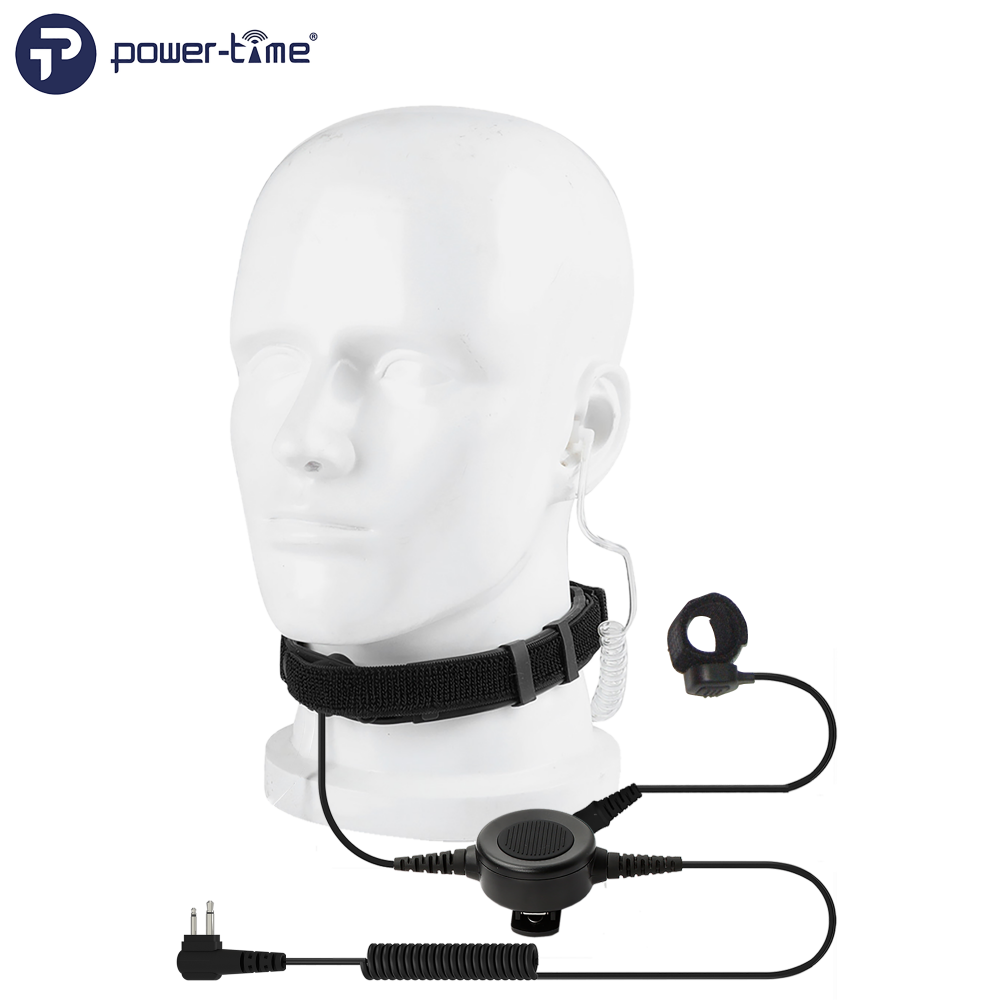

Dual PTT big round and finger style for throat microphone

No.PTE-796S
IP67 waterproof Nexus quick disconnector PTT for tactical headset
  • Dual PTT big round and finger style for throat microphone
Description
Speaker Specification
Type Transducer Moving coil dynamic speaker
Impedance 32Ω±15% @1KHZ
Sensitivity 115±3%/1mW
Resonance freq 1KHZ±20%
Frequency respond 100Hz~5KHz
Rated input power 1mW
Maximum input power 10mW

Microphone Specification
Type Pickup MIC
Sensitivity Range -47 ± 3dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa B16
Impedance Max 2.2KΩ 1kHz (RL=2.2KΩ)
Frequency 300-5KHz
Current Consumption Max 0.5uA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range 1.0V-10V (DC)
Max Sound pressure Level 115dB S.P.L  THD<10% at 1K Hz
