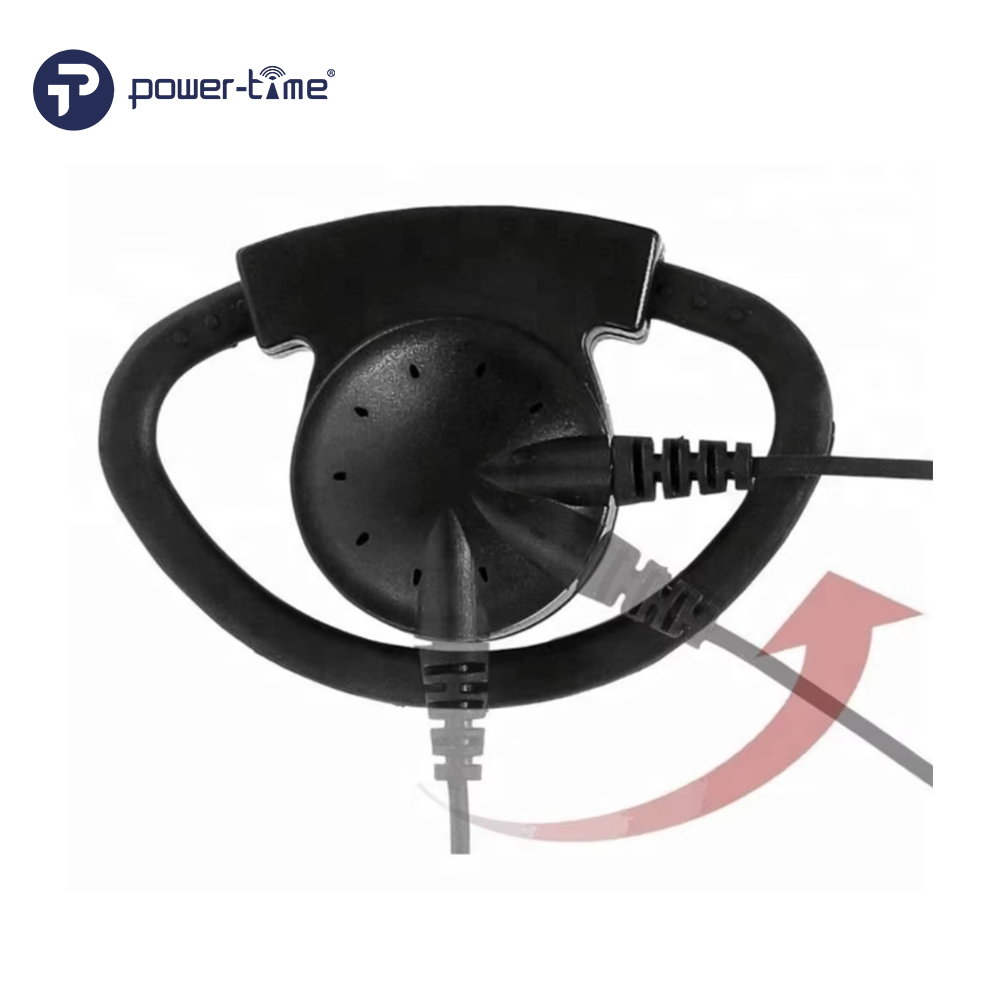

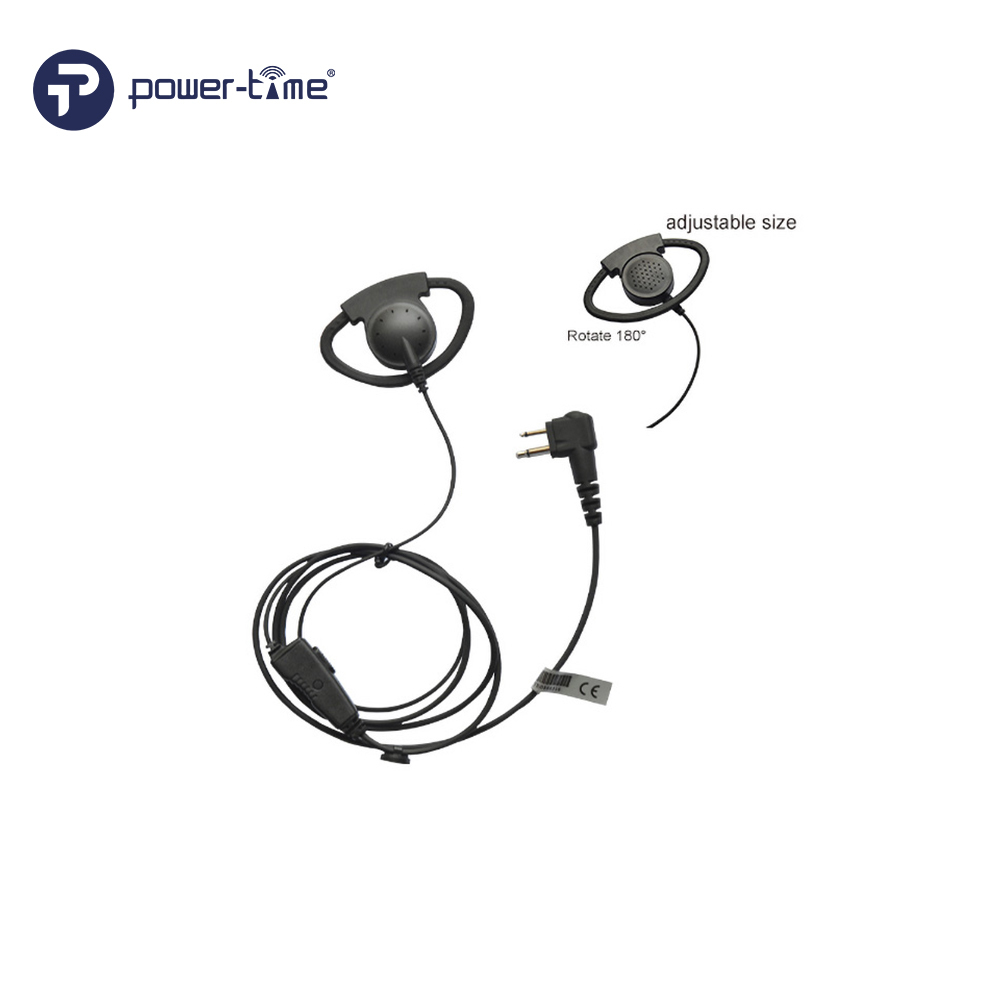

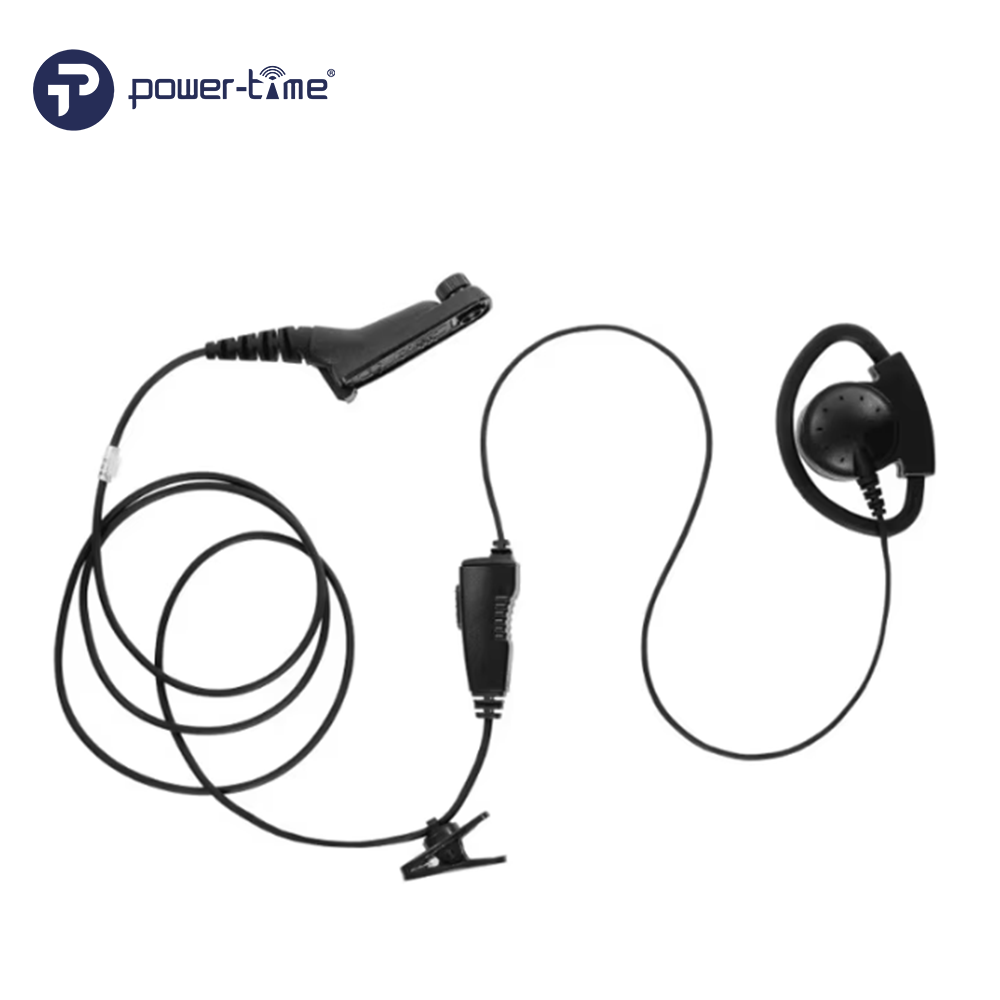

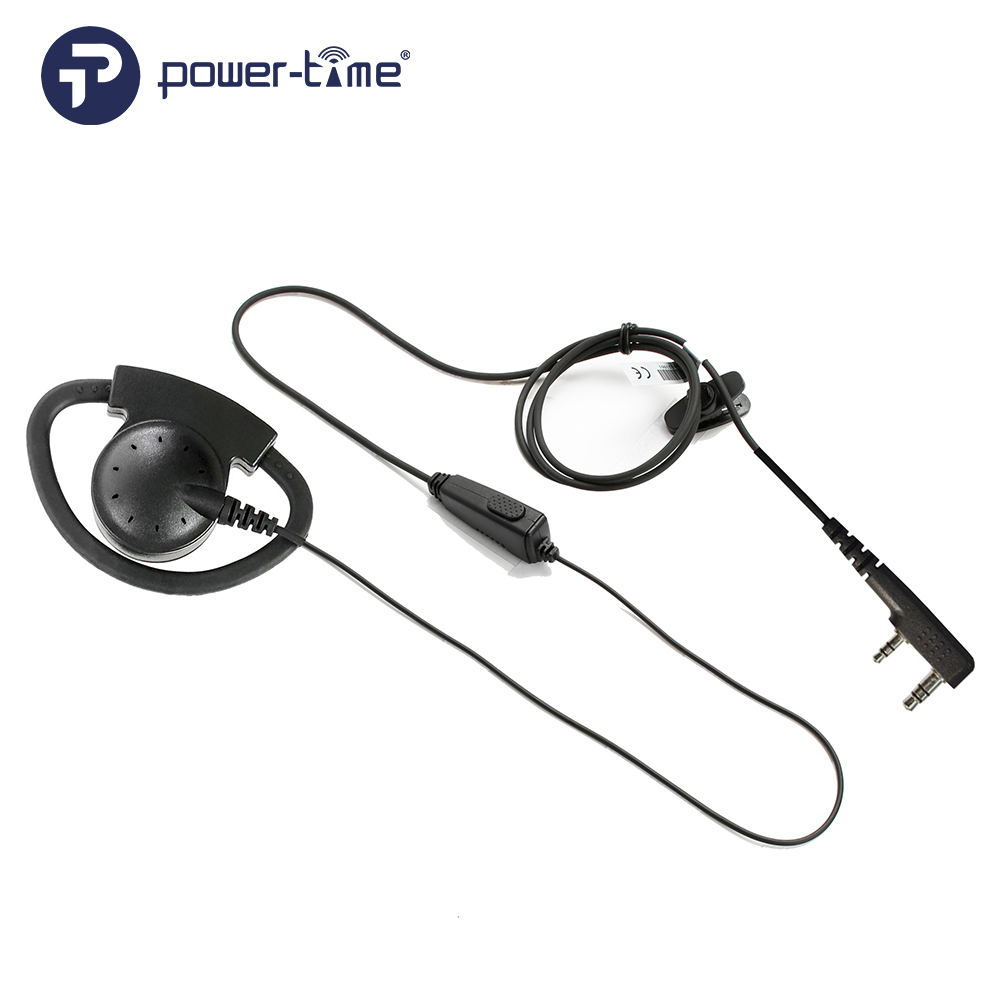

The PTE-180 Patent D-Shape Adjustable Earhook Earpiece is engineered for professional two-way radio communication with enhanced comfort, durability, and performance. Its rotation earhook design ensures a secure and customizable fit for any user, making it ideal for long hours of operation. The earpiece offers clear audio transmission and hands-free convenience. PTE-180 is perfect for daily use in security, hospitality, logistics, retail, and public safety environments.
Key Features
Patent D-Shape Earhook Design – Ergonomic and secure fit for all users
360° Adjustable Rotation – Flexible wearing for left or right ear
In-line PTT Microphone – Clear communication with push-to-talk control
Comfortable & Lightweight – Suitable for long-duration professional use
Durable Construction – Reinforced cable and over-molded SR
Stable Fit with Ear Support – Won’t slip during active movement
Universal Compatibility – Compatible with Motorola, Kenwood, Hytera, Icom, Baofeng, Vertex, and more
Hands-Free Operation – Ideal for team communication on the move
Speaker Specification
| Type |
Moving coil dynamic speaker |
| Impedance |
32Ω±15% @1KHZ |
| Sensitivity |
130±3dB @1KHZ |
| Resonance freq |
(F0) 600HZ±20% |
| Frequency respond |
20~10KHz |
| Rated input power |
500mW |
| Maximum input power |
700mW |
|
| Sensitivity Range |
-44±4dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa |
| Impedance Max |
2.2KΩ 1kHz (RL=2.2KΩ) |
| Frequency |
100-10KHz |
| Current Consumption Max |
0.5uA RL=2.2KΩ Vs=3.0V(DC) |
| Operation Voltage Range |
1.0V-10V (DC) |
| Max Sound pressure Level |
110dB S.P.L |
|
